FDAC Filter Design

Features FDAC Filter Design

This is very user friendly app for SMPS filter design and calculation of inductor, transformer and capacitor.1.
FDAC provides filter calculation at just 1 click.2.
The default values and calculations are given for inductor, capacitor and transformer in every circuit.3.

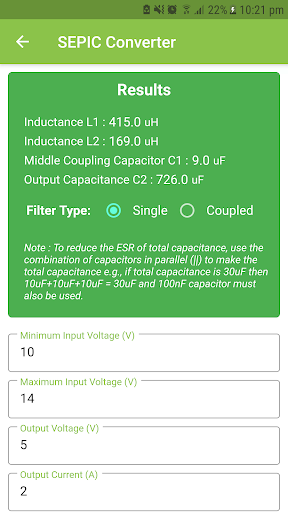

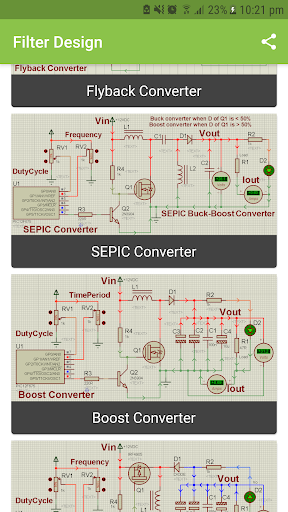

The filter values are calculated for following circuits:i) Asynchronous Buck Converterii) Synchronous Buck Converteriii) Boost Converteriv) Inverting Buck-Boost Converterv) Cuk Convertervi) Sepic Convertervii) Flyback ConverterMore filter circuits for design and calculation will also be added and this app will also proivide design parameters for inductors and transformers.
